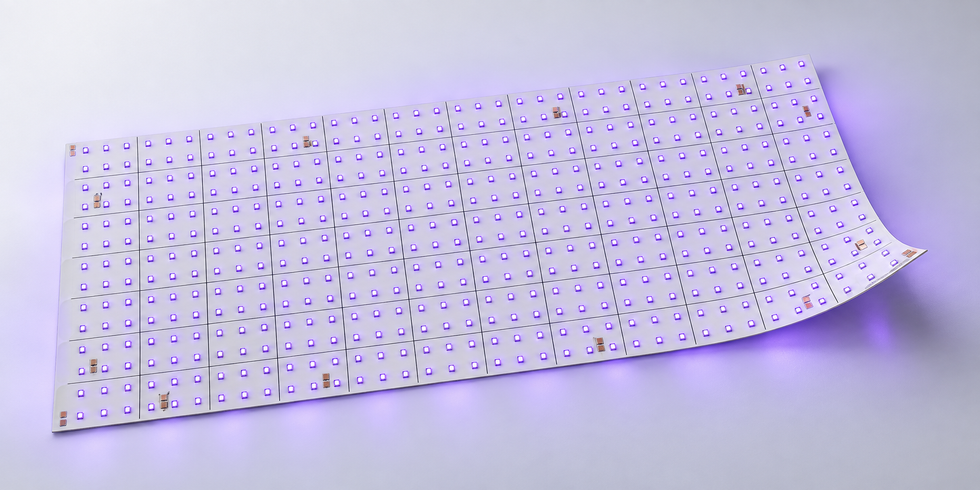

SMD 2835 Flexible UV-A LED Sheet — 365 nm

Flexible ultraviolet illumination with uniform coverage

The LEDw@re Flexible UV-A LED Sheet provides powerful and evenly distributed ultraviolet illumination across a remarkably thin and adaptable surface. With 420 high-density SMD 2835 LEDs, the sheet delivers consistent 365 nm UV-A output without the visible hotspots associated with conventional LED strips.

Its flexible PCB construction makes the sheet suitable for flat surfaces, curved structures and custom-built installations. The modular layout can be cut after every six LEDs, allowing the lighting surface to be adapted precisely to the required dimensions.

Key benefits
High-density array with 420 SMD 2835 LEDs
Precise 365 nm UV-A wavelength
Even ultraviolet distribution across the entire surface
Flexible PCB for flat and curved installations
Cuttable after every six LEDs
Compact 500 × 250 mm format
Efficient 24 VDC operation
Only 30 watts per complete sheet
Multiple connection points for flexible wiring
Suitable for custom and OEM integration
Technical specifications
Specification Value
LED type SMD 2835 UV-A
Wavelength 365 nm
Number of LEDs 420
Input voltage 24 VDC
Power consumption 30 W
Current at full load Approx. 1.25 A
Dimensions 500 × 250 mm
Sheet surface 0.125 m²
Power density 240 W/m²
LED density 3,360 LEDs/m²
Cutting interval Every 6 LEDs
Individual section Approx. 50 × 35.7 mm
PCB type Flexible LED sheet
Light colour Ultraviolet with visible purple component
Applications

The flexible UV-A sheet is suitable for professional applications such as fluorescence inspection, security-print verification, decorative UV effects, resin and adhesive processes, technical inspection systems, display cabinets and custom ultraviolet luminaires.

Compatibility with UV-sensitive materials and the required exposure time must always be verified for each application.

Important information

365 nm is UV-A radiation and is largely outside the visible spectrum. The visible purple glow therefore does not provide an accurate indication of the actual UV output. Avoid direct exposure of the eyes and skin. Install suitable shielding and observe the applicable UV-safety procedures.

Short product description

A professional 500 × 250 mm flexible UV-A LED sheet with 420 SMD 2835 LEDs. Operating at 24 VDC and 30 W, it provides uniform 365 nm ultraviolet illumination and can be cut after every six LEDs for precise custom integration.
